Regular price $3,895.00 $3,845.00 Sale

This easy to assemble all-steel engineered carport is made for the Canadian winter. It comes in 10 or 12 foot wide and from 15 to 100 feet long, all with 7 feet or 9 feet of height.  Use this rugged carport to protect your vehicle, truck, ATV, outdoor equipment or picnic area. Great for storing boats, equipment, outdoor furniture and summer toys in the off-season. Comes with a bombproof 2" square steel tube frame (15 gauge steel). This shelter is rated for up to 3 feet of snow or 100 mph winds when properly anchored with the 300 lbs pull strength anchors provided for each post. Wrap-around front and side enclosure kits are provided only for the 10x15, 10x20 and 12x20 sizes.

LIMITED INVENTORY ALERT!

Please contact us to confirm inventory before you order
at support@grizzlyshelter.ca

Click Here for 20 Feet Wide x 20+ Feet Long Steel Carports

Grizzly Shelter Ltd Steel Metal Carport Wind and Snow Rated for Canada Winters

Each Steel Carport is wind (100 mph) and snow load (35 psf) rated, meaning they are designed to take on tough weather conditions and able to stand up to accumulated snowfall. Its galvanized steel metal roof is made to protect against corrosion, rust and the elements and features an attractive eggshell roof. It also comes with a set of 300 lbs pull-strength ground auger anchors to keep it secured to the ground.

20 Foot Wide Steel Carport with Vinyl Enclosure

NOTE: Vinyl side enclosures are only available for 7 foot high 10x15, 12x20 and 20x20 sizes only. Steel enclosures are available for all sizes (contact us for quote).

Contact Us with your postal code for shipping cost prior to order, or see pickup dimensions further below for Calgary, Alberta or Longueuil, Quebec (77 inches is longest box length).

Two Vehicles? Click here for a double wide 20 foot carport up to 9 feet high

RV Carport? Click here for a 14 foot wide x 14 high Steel RV Carport

Vinyl Side Enclosure? Click here for 10x15, 12x20 or 20x20 sizes only

Steel Metal Carport - Grizzly Shelter Ltd.



10 Year Warranty on Arrow CarportsThis is our best selling metal car port, and is assembled on a tough all-steel, powder coated 2 inch 15 gauge steel tube frame (1 3/4" inside width or 1/8" thick steel), made to reinforce stability and strength in the structure. The premium powder coating provides corrosion and rust resistance through all seasons. Easy to install, this garage comes with slip-fit connections with pilot holes and self-drilling screws making this unit easy to build straight out of the box.



















These steel carports ship from Calgary AB, or Longueuil QC subject to availability.

Ships from Calgary AB, or Longueuil QC
(add to cart for shipping estimates,
contact us with postal code for final quote)

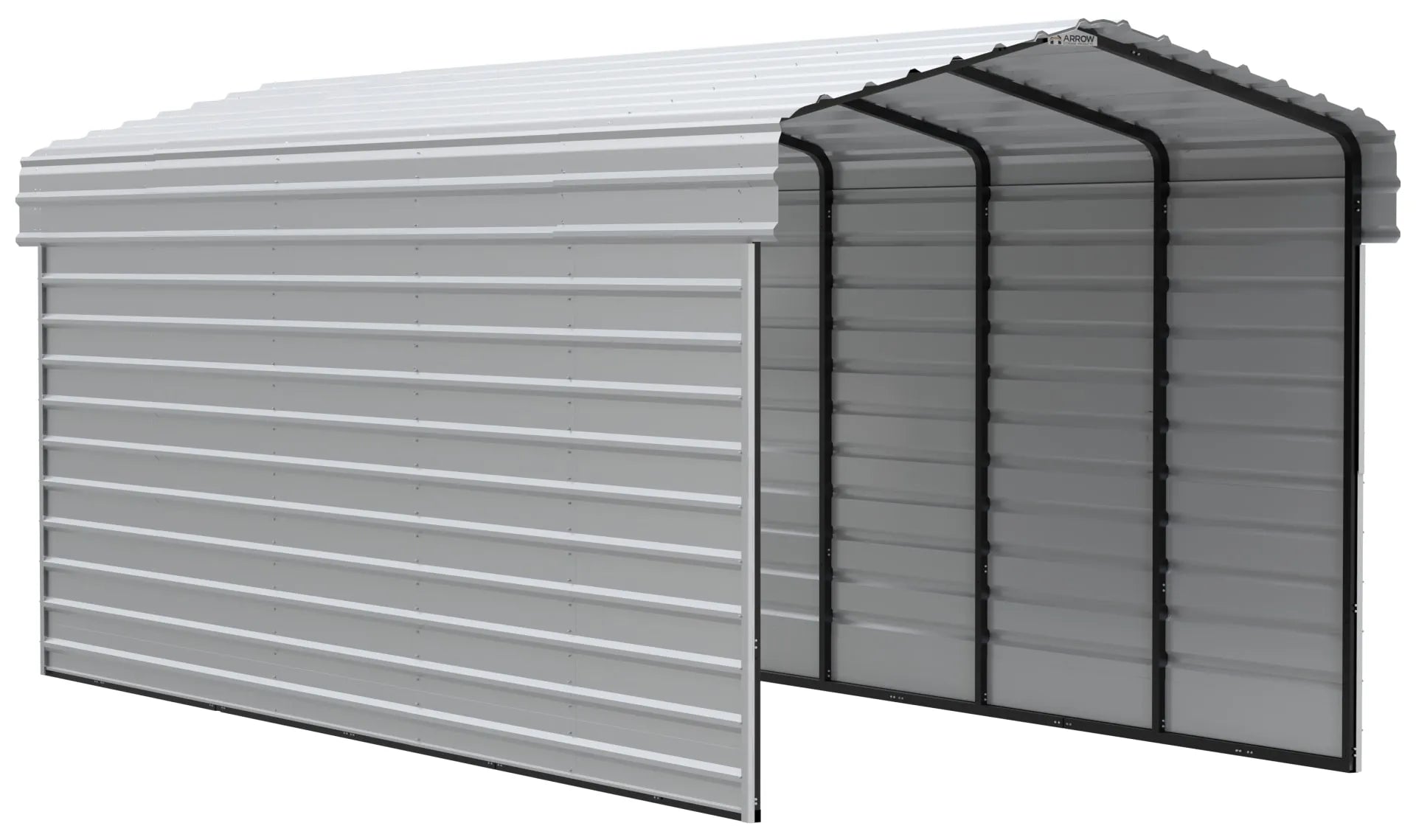

12x20 Steel Carport with Vinyl Enclosure - Grizzly Shelter Ltd.

  • Featuring a 2 in. square tube frame, the Steel Metal Carport provides stability and strength to the unit, increasing it's wind and snow load capability.
  • An all-weather carport that will protect your vehicle or outdoor space all-year long: the Steel Metal Carport is built to take on even tough weather - winds up to 100 MPH, and a snow load of 35 PSF.
  • Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
  • A heavy-duty, galvanized steel roof that's built to last - the carport features a 29-gauge painted galvanized steel for corrosion resistance. Roof is 7 feet high at sides and 8 1/2 feet high at the middle for our 3 sizes provided

  • Weight surcharge may apply for larger items and/or shipping outside of Calgary AB, or Longueuil QC.

  • NOTE: 10x20 Carport comes as a 10x15 box with a 5 foot extension (look for the 10x15 box/label and a separate 5 foot extension box).  The manual for the 10x20 uses the same assembly directions as does the 10x15 (e.g. there is no 10x20 manual).

Looking for a round top polycarbonate and aluminum carport style?
Click image below for pricing and specs.


Arcadia Carport - Polycarbonate for Car or Truck

Arrow Steel Carport Boat Shelter

10x24 Steel Carport (Charcoal) - Port Carling, Ontario Customer Photo 2021.

10 Foot Wide Carport

10x20 Steel Carport Dimensions - Grizzly Shelter Ltd.

12 Foot Wide Carport

12x20 Steel Carport Dimensions - Grizzly Shelter Ltd.

Carport customers also bought the Vinyl Carport Enclosure Kit.
Looking for a 20 foot wide steel carport, click here!

  • Roof in an attractive Eggshell or Charcoal finish, with a black powder coated steel frame. Rounded roof eaves off additional protection from the elements with 12 in. overhang at the roof gables offers additional protection.

  • Based on customer feedback, it is recommended that you apply your own caulking to seal the roof joints in addition to the foam strips provided.

  • Although a set of 300 lbs pull-strength ground anchors are included (# based on length of your carport, 10x15 comes with 8, and each extra 5 foot length adds 2 more), in order to secure properly to a concrete foundation we suggest that you talk to a contractor or your local hardware store for appropriate anchoring recommendations for your area.

  • Has a 10-year warranty and durable galvanized steel roof

Steel Metal Carport for Small RV  - Grizzly Shelter Ltd.

    TECHNICAL SPECS
    Assembly Manual Download (PDF) for 10x15 or 10x20
    Download (PDF) for 12x20 or longer
    Style Peak
    Material Galvanized Steel
    Frame Color Black
    Included Items Frame, Cover, Hardware
    Sizes in Feet
    (ask for more)
    10 wide x 15 long  x 7 high.
    10 wide x 20 long x 7 high.
    12 wide x 20 long x 7 high.
    NOTE: Roof peak is 8 1/2 ft
    Rib Tubing Diameter 2 in.
    Total Storage Area 148 sq. ft.
    Total Storage Volume 1110 cu. ft.
    Assembly Required Yes
    Assembled Exterior Dimensions Width 120 in.
    Assembled Exterior Dimensions Depth 183.25 in.
    Assembled Exterior Dimensions Height 98.4 in.
    Assembled Interior Dimensions Width 116 in.
    Assembled Interior Dimensions Depth 183.25 in.
    Assembled Interior Dimensions Height 96.4 in.
    Door / Entrance Width Bottom 116 in.
    Door / Entrance Height Center 82 in.
    Wall Height 84 in.
    Warranty 10 Year Limited
    Wind and Snow Rated Yes
    Wind Speed Rating 100 MPH
    Snow Load Rating 35 PSF



    Shipping Boxes and Weights for Pickups (Calgary AB or Longueuil PQ)

    Pickup Up Dimensions - 12 wide x 20 long x 7 high
    # OF BOXES 3 - 575 lbs total
    CARTON 1 GROSS WEIGHT (LBS) 161
    CARTON 1 HEIGHT (IN) 4.41
    CARTON 1 LENGTH (IN) 70.87
    CARTON 1 WIDTH (IN) 24.41
    CARTON 2 GROSS WEIGHT (LBS) 190
    CARTON 2 HEIGHT (IN) 4.41
    CARTON 2 LENGTH (IN) 70.87
    CARTON 2 WIDTH (IN) 24.41
    CARTON 3 GROSS WEIGHT (LBS) 224
    CARTON 3 HEIGHT (IN) 3.5
    CARTON 3 LENGTH (IN) 70
    CARTON 3 WIDTH (IN) 30.25

    Pickup Up Dimensions - 14 wide x 20 long x 14 high
    # OF BOXES 5 - 988 lbs total
    CARTON 1 GROSS WEIGHT (LBS) 195
    CARTON 1 HEIGHT (IN) 5.25
    CARTON 1 LENGTH (IN)66.88
    CARTON 1 WIDTH (IN) 28
    CARTON 2 GROSS WEIGHT (LBS) 264
    CARTON 2 HEIGHT (IN) 6.5
    CARTON 2 LENGTH (IN) 66.88
    CARTON 2 WIDTH (IN) 28
    CARTON 3 GROSS WEIGHT (LBS) 263
    CARTON 3 HEIGHT (IN) 6.62
    CARTON 3 LENGTH (IN) 66.88
    CARTON 3 WIDTH (IN) 28
    CARTON 4 GROSS WEIGHT (LBS) 133
    CARTON 4 HEIGHT (IN) 3.5
    CARTON 4 LENGTH (IN) 70
    CARTON 4 WIDTH (IN) 30.25
    CARTON 5 GROSS WEIGHT (LBS) 133
    CARTON 5 HEIGHT (IN) 3.5
    CARTON 5 LENGTH (IN) 70
    CARTON 5 WIDTH (IN) 30.25

    Pickup Up Dimensions - 20 wide x 20 long x 7 high
    # OF BOXES 6 or 1,119 lbs
    CARTON 1 GROSS WEIGHT (LBS) 170.75
    CARTON 1 HEIGHT (IN) 5.5
    CARTON 1 LENGTH (IN) 76.58
    CARTON 1 WIDTH (IN) 22.25
    CARTON 2 GROSS WEIGHT (LBS) 158.25
    CARTON 2 HEIGHT (IN) 5.12
    CARTON 2 LENGTH (IN) 76.58
    CARTON 2 WIDTH (IN) 22.25
    CARTON 3 GROSS WEIGHT (LBS) 205
    CARTON 3 HEIGHT (IN) 7.1
    CARTON 3 LENGTH (IN) 76.57
    CARTON 3 WIDTH (IN) 22.25
    CARTON 4 GROSS WEIGHT (LBS) 228.75
    CARTON 4 HEIGHT (IN) 7.1
    CARTON 4 LENGTH (IN) 76.58
    CARTON 4 WIDTH (IN) 22.25
    CARTON 5 GROSS WEIGHT (LBS) 178
    CARTON 5 HEIGHT (IN) 3.5
    CARTON 5 LENGTH (IN) 70
    CARTON 5 WIDTH (IN) 30.25
    CARTON 6 GROSS WEIGHT (LBS) 178
    CARTON 6 HEIGHT (IN) 3.5
    CARTON 6 LENGTH (IN) 70
    CARTON 6 WIDTH (IN) 30.25
