20 Foot Wide Steel Carport

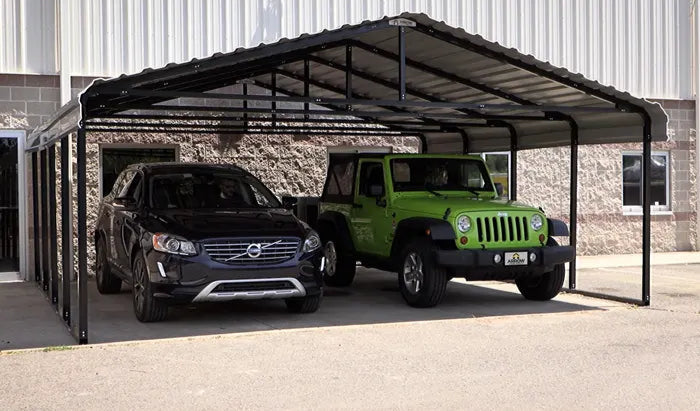

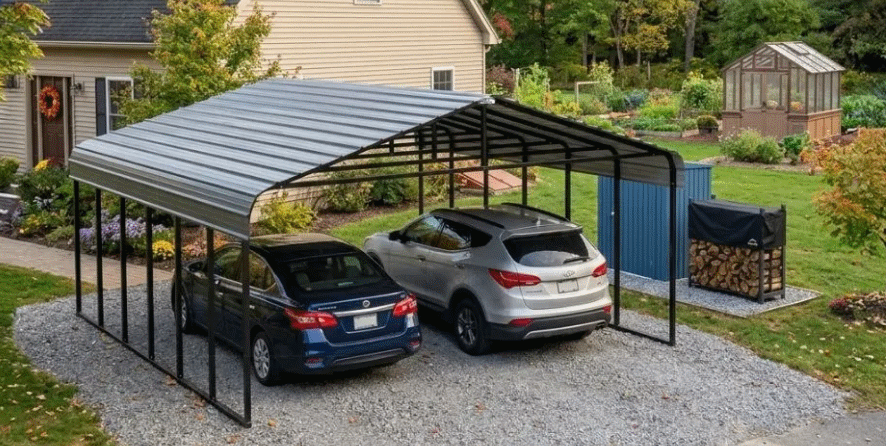

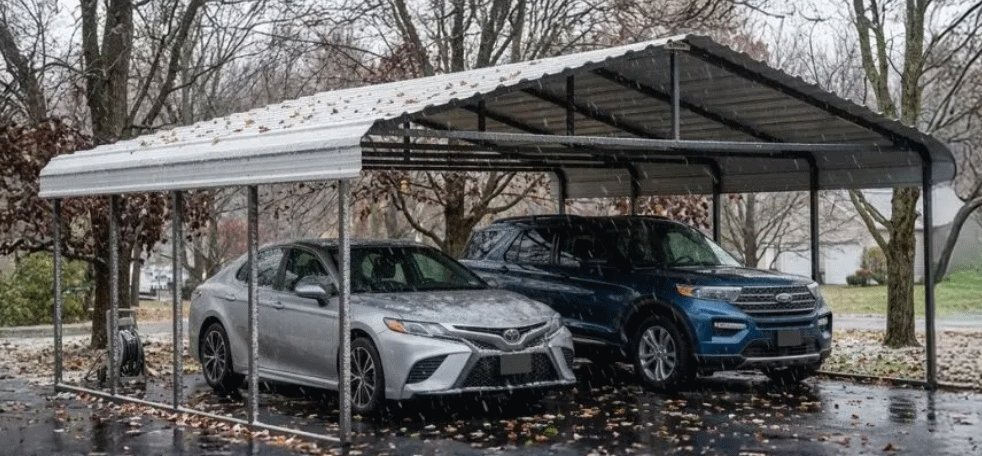

This 20 foot wide 7 or 9 foot high clearance steel carport is ideal for the Canadian winter snow loads, ice, hail and wind. It is a multi-use shelter and carport, perfect for two cars or trucks, vehicles, boats, tractors, and outdoor picnic areas and patio furniture. It comes in extendable sizes such as: 20 wide x 20 long, 20x24 and 20x29 or longer using 4 1/2" extensions. For example, the 20x20 base kit comes with 4.5 foot extensions for as long as you would like. Ships  out from Calgary AB or Longueuil QC in 1 to 2 weeks depending on time of year (assuming in stock). There is a 10 year warranty on this carport also.

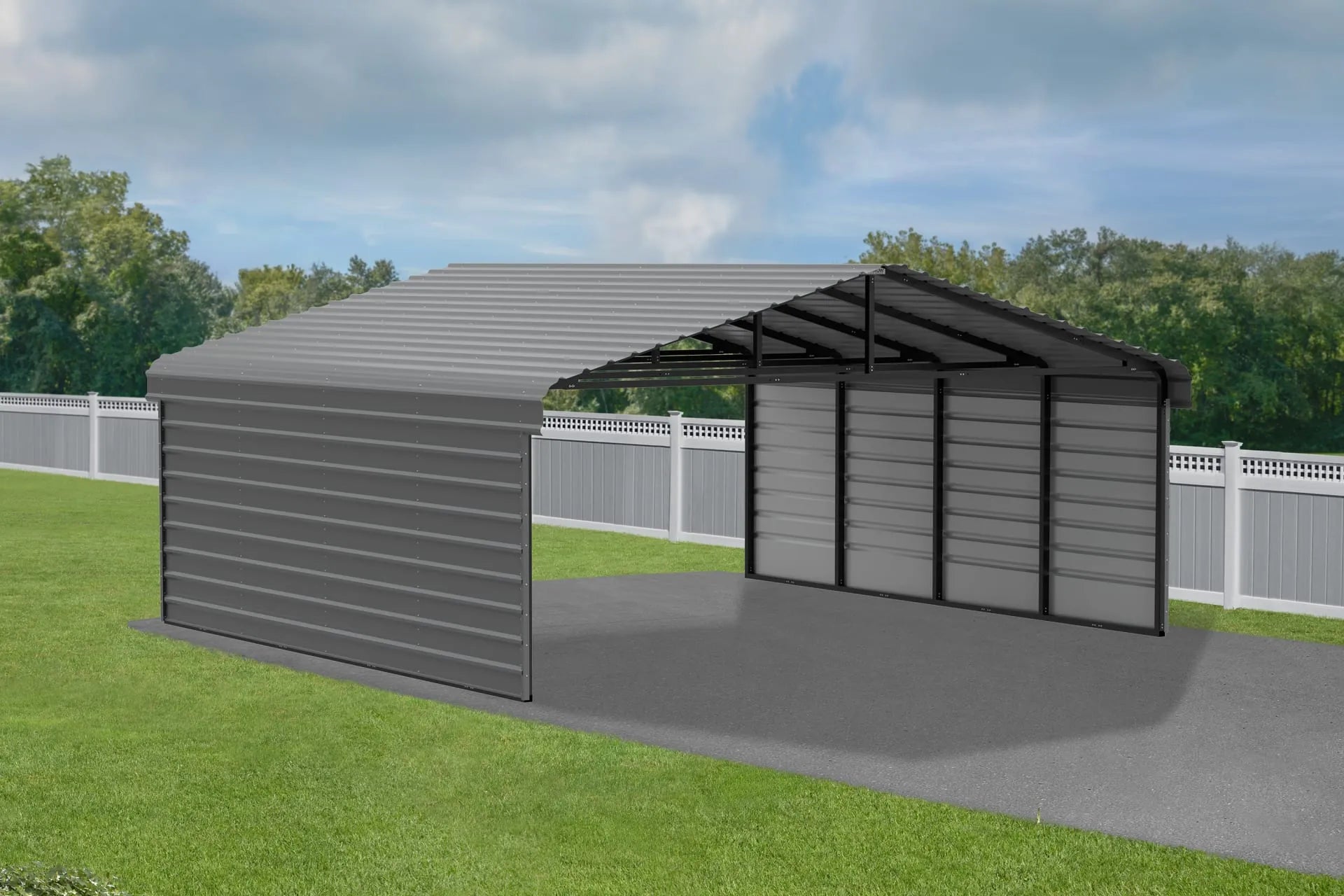

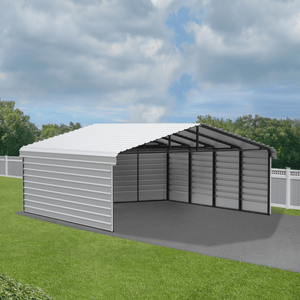

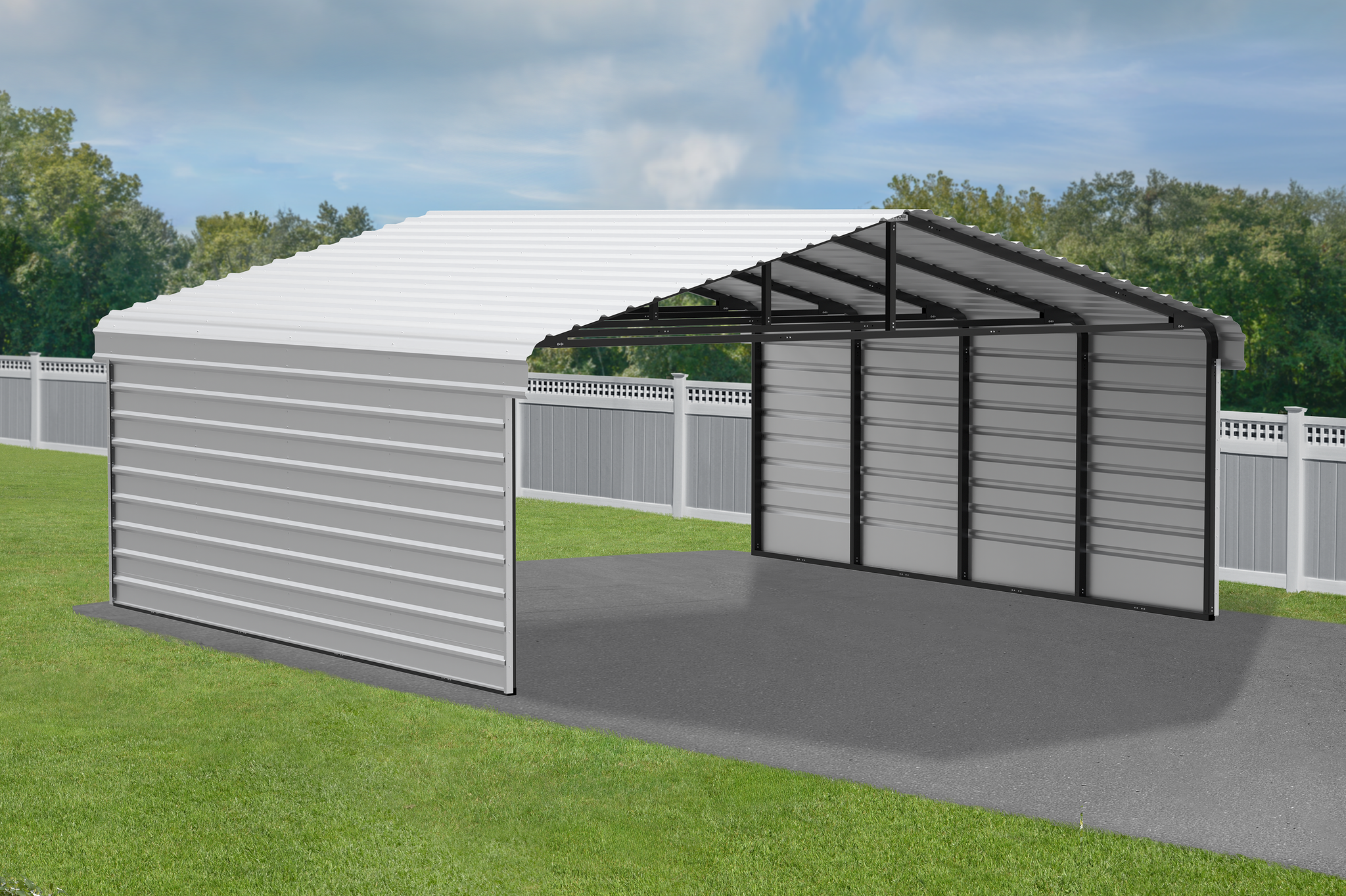

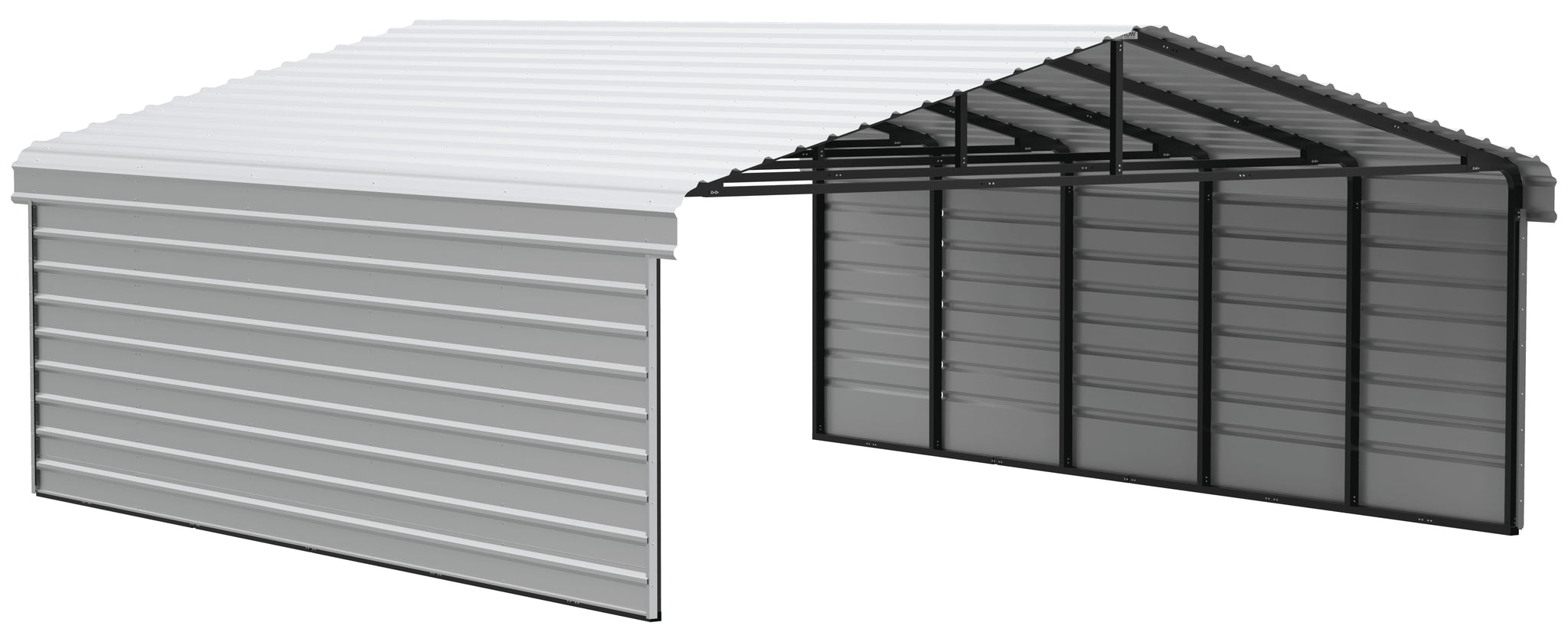

NEW! Add steel sides to your 20 wide 7 or 9 foot high carport!

CONTACT US WITH YOUR ADDRESS PRIOR TO ORDER SHIPPING QUOTE

It has a 7 or 9 foot height drive-in clearance at the front and sides with earth auger ground anchors included.  Some customers install on concrete blocks/concrete pony wall or pressure treated wood to add height.

You can add height with a raised/pony wall concrete foundation, cinder blocks or pressure treated 4x4s. This is our most popular carport style, and we are getting a limited quantity and expect to sell out, so order soon.

PRO TIP: We recommend you slope the angle of your carport and apply the steel roof panels in a downslope "roof shingle" arrangement.  There is weather-stripping supplied in the kit, but it is not as reliable as good roof caulking.  But if your roof is sloped and you overlap the steel panels like roof shingles, there is really no need for further adhesives. Given the gullies on the roof, a slope of 5% or more is recommended to avoid standing water over the seams.

Looking for something more upscale to add value to your property?
See our Made in Canada Kootenay 20 Wide Carport Below

For Steel 10 and 12 Foot wide carports, click here or below!

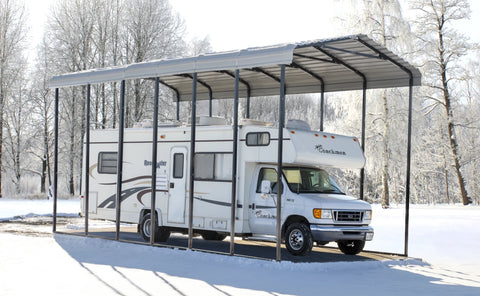

14 Foot Wide x 14 High RV Steel Carports, Click Here

Built strong, wind (100 mph) and snow rated (35 psf), and backed by a 10-year limited warranty is the 20 Foot Wide Steel Carport below.

This galvanized steel carport features a powder coated steel frame made with 2" x 3" rectangular tubing (15 gauge or 1/8" thick) for extra strength, corrosion and rust resistance. The tough made 29 gauge galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area.

DESIGNED FOR STRENGTH

2 x 3 inch steel tubing with 15-gauge (1/8th inch) wall thickness delivers wind and snow load strength and stability. Premium black powder coat finish resists rust and corrosion. Rib spacing is 4.5 ft. / 1,3 m.

EASY INSTALLATION

Slip-fit frame connections with pilot holes and self-drilling screws for easy assembly. Ready-to-build right out of the box. Comes with ground auger anchors (300 lbs pull strength) to secure to ground (10 for the 20x20 size, and more for larger sizes).

BUILT-TO-LAST ROOF

Horizontal roof panels with 29-gauge painted galvanized steel for corrosion resistance. Roofing panels are meant to be tiled downhill to prevent leaks to avoid holding water in ridges. Rounded eaves for additional protection from elements. 10 in. / 25,4 cm overhang at the gables. Choice of Charcoal or Eggshell roof panels.
PRO TIP: We suggest adding your own caulking to the roof seams in addition to the peel and stick foam tape provided.

ENGINEERING SPECS (Based on 20x20 size)

SHAPE OF TUBE: RECTANGLE

WIND LOAD RATING (MPH): 100

SNOW LOAD RATING (PSF): 35

ROOF ANGLE: 14

DOOR WIDTH (IN): 237

ENTRANCE HEIGHT (IN): 84.35

BUILDING SHAPE: PEAK

FOUNDATION LENGTH (IN): 252

FOUNDATION WIDTH (IN): 252

WALL HEIGHT (IN): 84

EXTERIOR DEPTH (IN): 237

EXTERIOR HEIGHT (IN): 118

EXTERIOR WIDTH (IN): 243

PRODUCT COLOR
FRAME COLOR: BLACK
ROOF COLOR: EGGSHELL or CHARCOAL

SHIPPING INFORMATION
20'x20' at 7' High Carport Size

HEIGHT AS SHIPPED (IN): 36.03

WIDTH AS SHIPPED (IN): 30.25

LENGTH AS SHIPPED (IN): 76.58

WEIGHT AS SHIPPED (LBS): 1,167 (includes pallet)

# OF BOXES 6
CARTON 1 GROSS WEIGHT (LBS) 171
CARTON 1 HEIGHT (IN) 5.5
CARTON 1 LENGTH (IN) 76.58
CARTON 1 WIDTH (IN) 22.25
CARTON 2 GROSS WEIGHT (LBS) 159
CARTON 2 HEIGHT (IN) 5.12
CARTON 2 LENGTH (IN) 76.58
CARTON 2 WIDTH (IN) 22.25
CARTON 3 GROSS WEIGHT (LBS) 205
CARTON 3 HEIGHT (IN) 7.1
CARTON 3 LENGTH (IN) 76.58
CARTON 3 WIDTH (IN) 22.25
CARTON 4 GROSS WEIGHT (LBS) 229
CARTON 4 HEIGHT (IN) 7.1
CARTON 4 LENGTH (IN) 76.58
CARTON 4 WIDTH (IN) 22.25
CARTON 5 GROSS WEIGHT (LBS) 176
CARTON 5 HEIGHT (IN) 3.25
CARTON 5 LENGTH (IN) 70.75
CARTON 5 WIDTH (IN) 30.5
CARTON 6 GROSS WEIGHT (LBS) 176
CARTON 6 HEIGHT (IN) 3.25
CARTON 6 LENGTH (IN) 70.75
CARTON 6 WIDTH (IN) 30.5

20x24 Carport Size
Includes the above 20x20 base kit, and adds 1 box for a 4.5 foot extension kit and weights 1,383 lbs.

20x29 Carport Size
Includes the above 20x20 base kit, and adds 2 boxes for a 9 foot extension kit and weights 1,632 lbs.

ASSEMBLY MANUAL

NOTE: 20x24 and 20x29 sizes are based on the 20x20 base kit plus an extension kit. For example, when you order a 20x24, you will receive a base kit labeled as a 20x20 Carport, plus a 4 foot extension kit/box.

Download 20x20 Base Manual Here (applies for 20x24 and 20x29)
