Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport
Steel RV Carport

Steel RV Carport

Regular price $5,295.00 $4,645.00 Sale

The all-steel RV Carport is a 14 foot tall snow (35 psf) and wind (100 mph) rated shelter solution. The Steel Recreational Vehicle Carport comes with an easy to assemble and strong 2"x3" square US steel frame. It has a metal roof that is equipped to protect a variety of vehicles including your RV, Motorhome, Camper, Truck, Tractor, Van or 5th Wheel camper. Ground anchors are included for each post.

NOTE: Please Contact Us prior to order for latest shipping quote.
Going to checkout only gives rough estimates based on weight and distance.
Each  RV Carport is made strong with a a 100 mph wind and 35 psf snow load rating, meaning they are designed to take on tough weather and snow storms. This steel metal shelter comes with a 10 Year Warranty.

NOTE. We don't offer custom heights or lengths etc other than sizes listed. Many customers often just buy local 2x2 inch metal tubing locally or cut down the 2" square post tubes to customize to their desired height and insert connecting tubes, then fasten with self-tapping screws provided. When boxes arrive, there is a 14 wide x 20 long base kit, plus 4.5 foot extension kits depending on your length selected.
The 14 foot high metal cover is made from galvanized steel to offer your vehicle years of protection from the weather and harmful UV rays. The steel frame is durable and is made with a powder coating finish to protect the carport for extended corrosion protection. Easy to install, the Carport comes with slip-fit connections with pilot holes and self-taping screws making this unit easy to build straight out of the box.


Shipping from Calgary AB, or Longueuil QC
Contact Us for Quote to Your Address
(Add to Cart for Shipping Cost Estimates)

STRONG AND WEATHERPROOF

When it is important to protect your RV, Camper, Motor home, Truck, Tractor, 5th Wheel Trailer or any other tall vehicle the Steel RV Carport delivers a 100-mph wind rating and a 35-psf. snow rating for strength and stability. Ground

TALL SHADE STRUCTURE

The 14-foot-tall steel carport is perfect for protecting your vehicle. Also great as a multi-use shade and picnic area cover (base kit size below).

DURABLE AND RELIABLE

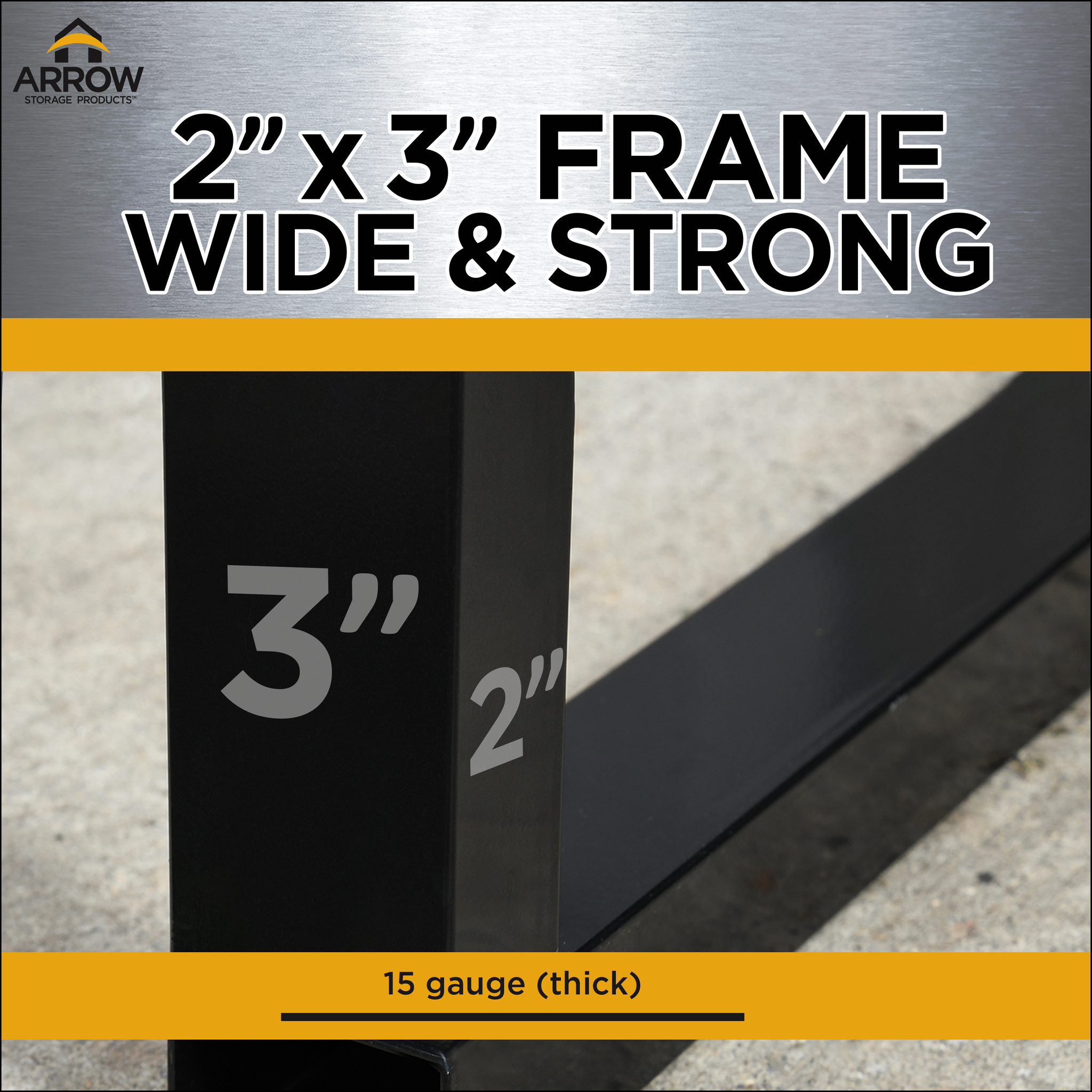

The Steel RV Carports are built from galvanized steel with a black powder coated finish 2 x 3 inch frame for superior rust and corrosion resistance which will offer years of protection for your tall vehicles.

PROTECTION THAT LASTS

The roof canopy is made from galvanized steel to protect your vehicle from harmful UV rays and other damaging weather. PRO TIP: Use the roof weather stripping (supplied) with some caulking to prevent any leaks where the roof panel seams overlap.

EASY ASSEMBLY

The RV carport is designed for easy assembly and installation with slip-fit connections and self-tapping screws for long lasting protection.

Download the 14W x 14H x 20L Base Kit Assembly Manual


PRODUCT SPECS

FRAME MATERIAL:  STEEL
ASSEMBLY REQUIRED (Y/N): Yes
NOMINAL ASSEMBLED HEIGHT FT.: 14
NOMINAL ASSEMBLED WIDTH FT.: 14

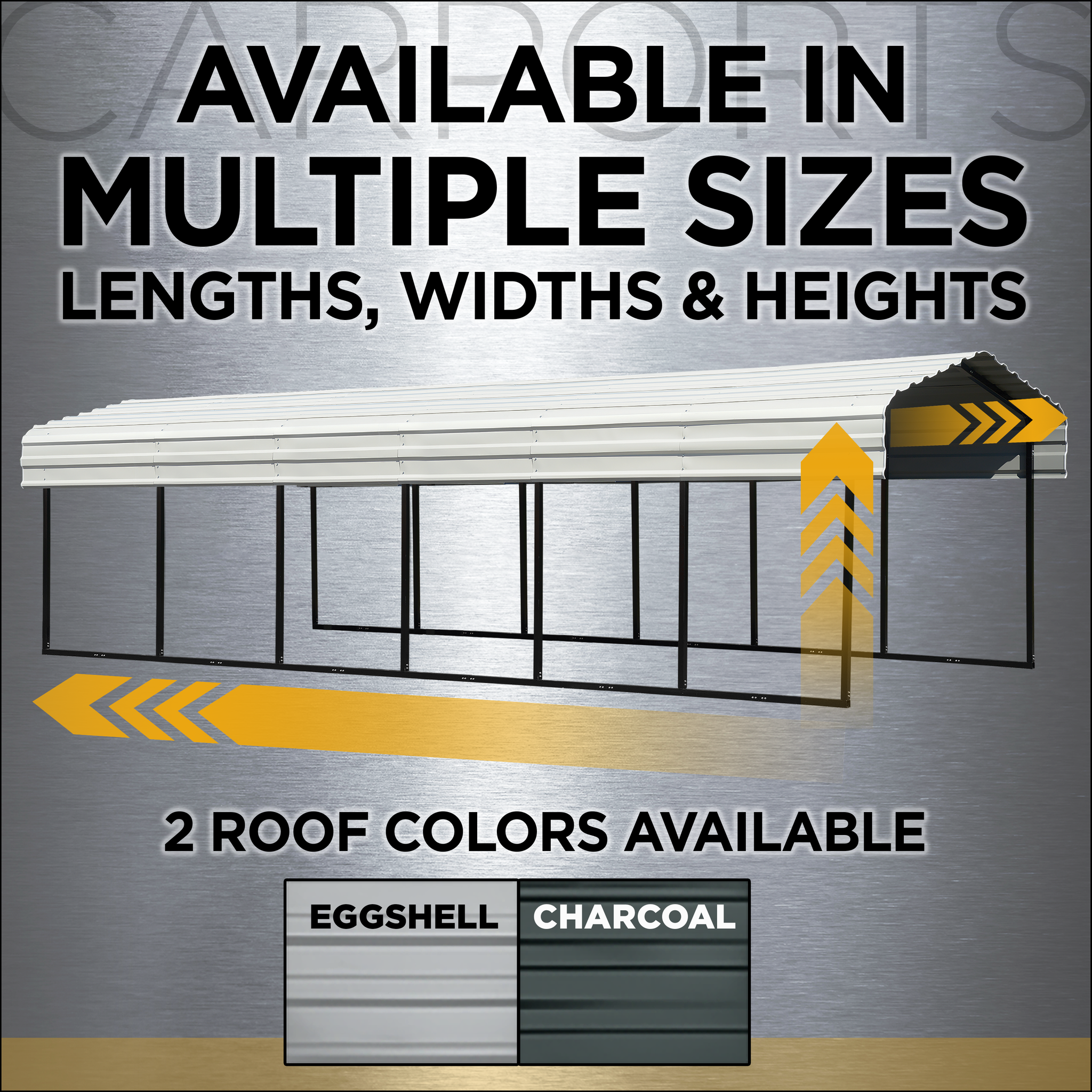

NOMINAL ASSEMBLED LENGTH FT: 20 to 51 Feet (4.5 Foot Extensions)
COUNTRY OF ORIGIN: USA

ENGINEERING SPECS

SHAPE OF TUBE: RECTANGLE
WIND LOAD RATING (MPH): 100
SNOW LOAD RATING (PSF): 35
ROOF ANGLE - UPPER: 14
ROOF PITCH - LOWER: 3
DOOR / ENTRANCE WIDTH BOTTOM (IN) 116
DOOR / ENTRANCE HEIGHT (IN) 169
BUILDING SHAPE:  PEAK
FOUNDATION LENGTH (IN): 300 to 620 depending on size
FOUNDATION WIDTH (IN): 180
WALL HEIGHT (IN): 169
ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 290.75
ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 192
ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 171

PRODUCT COLOR

FRAME COLOR:  BLACK
ROOF COLOR: EGGSHELL or CHARCOAL
ROOF TRIM COLOR: EGGSHELL or CHARCOAL

PICKUP UP / SHIPPING INFO (14Wx14Hx20L example)

# OF BOXES 5  at 988 lbs total
CARTON 1 GROSS WEIGHT (LBS) 195
CARTON 1 HEIGHT (IN) 5.25
CARTON 1 LENGTH (IN) 66.88
CARTON 1 WIDTH (IN) 28

CARTON 2 GROSS WEIGHT (LBS) 264
CARTON 2 HEIGHT (IN) 6.5
CARTON 2 LENGTH (IN) 66.88
CARTON 2 WIDTH (IN) 28

CARTON 3 GROSS WEIGHT (LBS) 263
CARTON 3 HEIGHT (IN) 6.62
CARTON 3 LENGTH (IN) 66.88
CARTON 3 WIDTH (IN) 28

CARTON 4 GROSS WEIGHT (LBS) 133
CARTON 4 HEIGHT (IN) 3.5
CARTON 4 LENGTH (IN) 70
CARTON 4 WIDTH (IN) 30.25

CARTON 5 GROSS WEIGHT (LBS) 133
CARTON 5 HEIGHT (IN) 3.5
CARTON 5 LENGTH (IN) 70
CARTON 5 WIDTH (IN) 30.25
Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances. These loads have been calculated using combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser.
