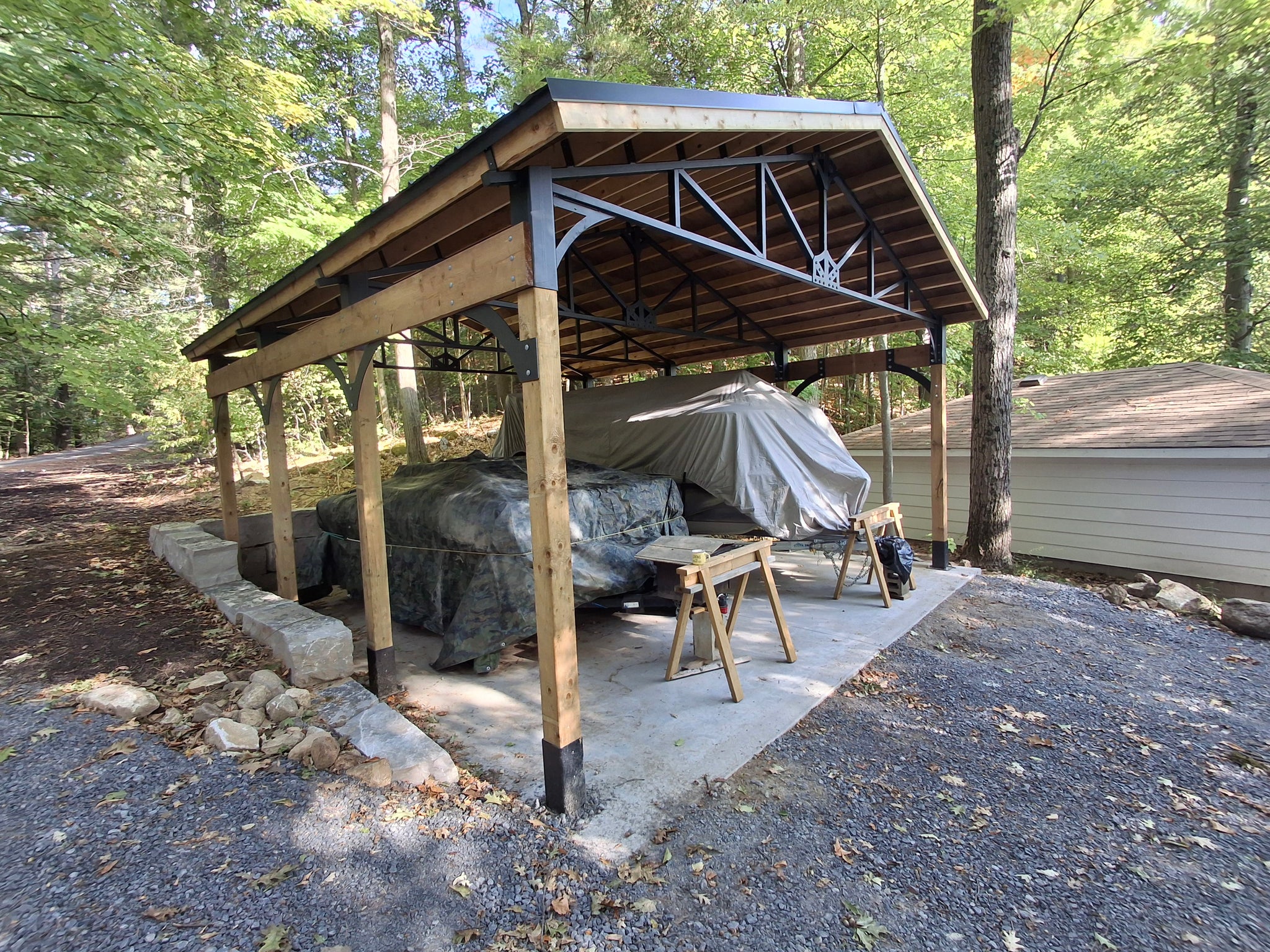

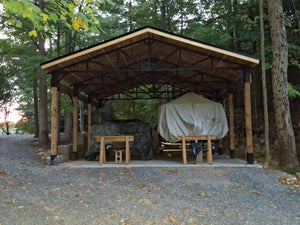

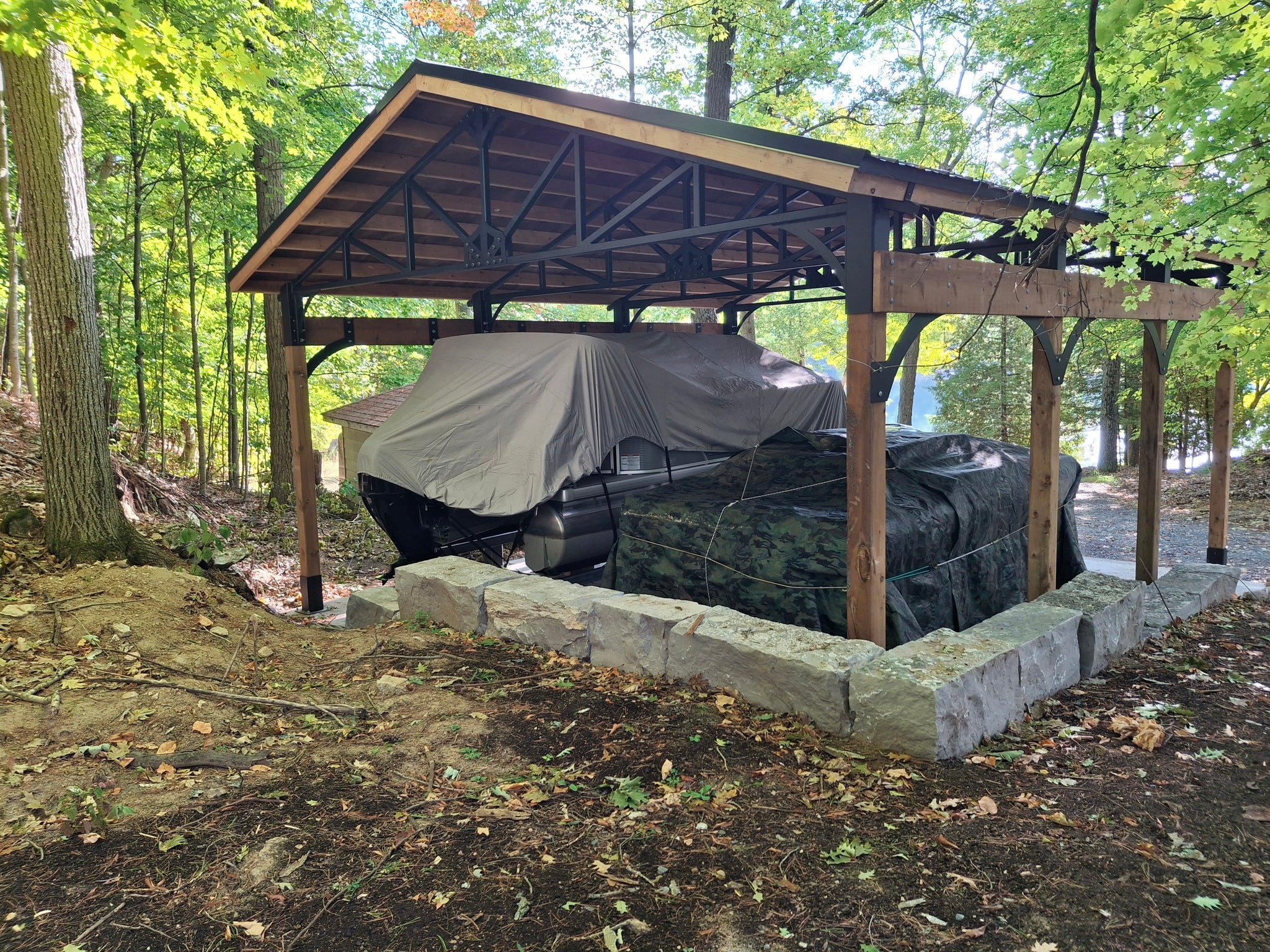

20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit
20 Foot Wide Steel Kootenay Carport Kit

20 Foot Wide Steel Kootenay Carport Kit

Regular price $8,995.00 $8,495.00 Sale

CONTACT US BEFORE ORDERING - 8 to 12 weeks production average in Toronto, Ottawa, Vancouver or Kelowna welders depending on time of year.  Pricing will vary by location and shipping distance to you.

The 20 foot wide inside (22 outside roof width) Kootenay steel carport kit combines the natural beauty of wood with the strength and durability of steel. Made in Kelowna, B.C. in our CSA approved shop, this sturdy DIY steel carport kit system provides you with the right size and quantity of high strength powder coated steel trusses, post boots and braces.  NOTE: We provide the powder coated steel trusses, braces and boots. You must provide your own steel roofing, bolts and fasteners as well as wood.  We will provide you with a hardware materials list so you can save money and buy locally.

Kootenay Steel and Wood Carport 20x20 Wide - Grizzly Shelter Ltd.

NOTE: We do not provide engineered stamped drawings, these depend on your specific geographic area and building inspector.

Grizzly Shelter 20 Foot Wide Steel Carport Truss

Pricing below assumes you provide the roofing, fasteners and wood from your local hardware store to our specs provided.   You may also choose to substitute a steel roof for clear or bronze 6 mm polycarbonate roofing panels and use it as a summer gazebo or pergola.

12 or 14 Foot Wide Steel Carports Here

This timber frame style wood and steel carport provides a snow load rating estimated at over 90 pounds per square foot (assuming steel 29 gauge roof) although you are responsible for permitting in your area. Our patented and CSA approved welded steel trusses, post boots and brackets support a 29 gauge ribbed metal roof. Please note that we can not provide an engineers stamp since each region and installation is different, but we do provide required drawings for permits further below.



Download Assembly Manual Here
Download 20x20 Permit Drawings Here
Download 20x24 Permit Drawings Here
Download 20x40 Permit Drawings Here

We ship within B.C. and Canada, but would have to quote your location with an address provided. Lead time averages 8 to 10 weeks for production, but varies with time of year. Please contact us for more information or with any questions. NOTE: You may need to provide dimensional drawings to your local building inspector.  You may need your own regional engineered stamp  (we do not provide engineered drawings approved for all of BC or Canada, this is not possible).

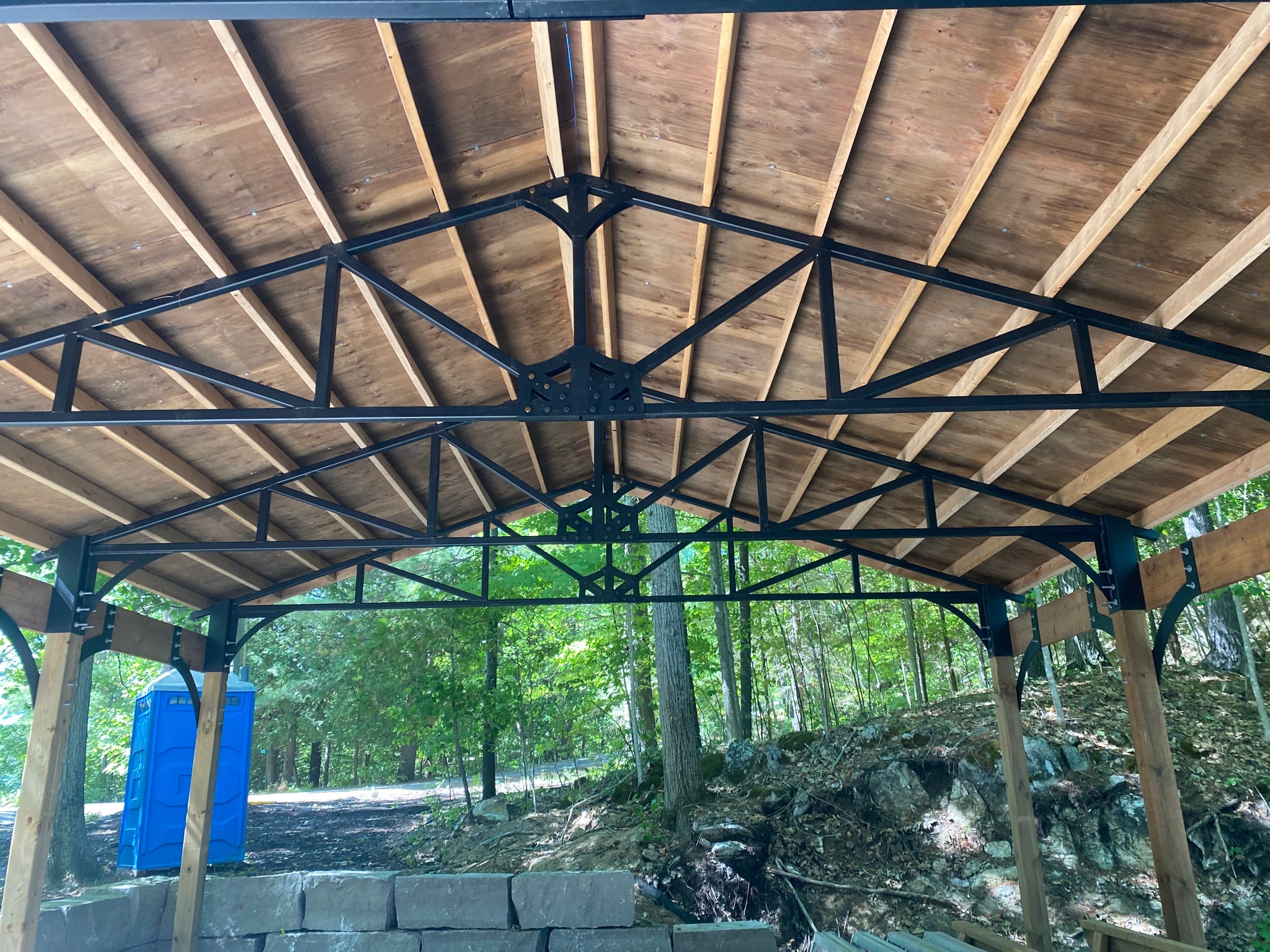

Kootenay Steel Trusses 20x20
Kootenay Steel Trusses 20x20
Kootenay 20 Wide Steel Carport
Kootenay Trusses 20x20


Steel Carport Braces 20x20 Foot Wide Truss

Testimonial from Nakusp, BC Customer

"Winter came in wet and heavy then froze up and held almost the whole winters snowpack before shedding. Almost 4’ settled snowpack, I’d call it a once in 20 year type scenario. Everything stayed straight as an arrow with the 20 by 40 Kootenay carport. Solid and attractive cover for a very large camper."

20 Foot Wide Steel and Wood Carport
20x20 Kootenay Carport Steel Kit
20x20 Carport

WE SUPPLY TRUSSES, BRACKETS & BOOTS

  • 2 inch square steel powder coated trusses (1/8th inch thick)
  • 20 foot inside width between 6x6 posts, 22 foot roof width
  • roof pitch of 6 or 26.5 degrees
  • bead welded brackets for mounting onto the wood frame
  • 14" high steel boots for anchoring and protection
  • 1/4" steel corner and middle post braces provided
  • designed for 90+ pounds per square foot snow load
  • powder coated steel in charcoal grey (or custom colour)
  • see our 10 Year Steel Warranty on trusses, boots & braces
  • our welding facility is CWB Certified to CSA 47.1

20 Foot Wide Steel Carport Truss

Kootenay Carport Steel Metal Truss 20 Foot Wide

20 Foot Trusses

WOOD POSTS, BEAMS & PURLINS (YOU SUPPLY)

You will need to supply the wood as follows (quantities/lengths vary by carport length);

  • 6x6 posts at 8 or 10 foot length depending on height you want (5 1/2" x 5 1/2" nominal size fits in boots and truss socket)
  • 2x12 beams at 16 foot length for a 20x20 carport (2 foot overhangs on each end) fir preferred
  • 2x6 purlins at 20 foot length for a 20x20 carport (roof overhang of 1 to 2 inches)
  • You will need to drill the appropriate holes in the posts and beams to attach the 1/4" steel braces using carriage bolts, washers and nuts provided
  • For a 20x20 carport, wood costs for posts, beams and purlins average currently around $1,200 to $1,500, and roofing averages $1,500 to $1,800 (so add $3K total to the truss/brace/boot/fasteners kit price above as an estimate). This will of course vary based on wood and steel prices, grade and your location.
Wood posts and steel boots

Kootenay Carport Lumber

Shipping from Kelowna, B.C.
Contact us for a delivery quote


STEEL ROOFING & RIDGE CAP (YOU SUPPLY)

  • We recommend 26 gauge metal roof and ridge cap
  • Westman Steel Tough Rib steel roofing
  • You may also choose to add eaves troughs to the 2x6 purlins on the end

20x20 Carport Kit Example List

We Supply the Trusses, Braces and Boots

  • 3 Trusses (22 foot outside width, 20 foot inside width, 20 foot long covered area)
  • 6 Post boots (5 1/2" x 5 1/2" x 8' high)
  • 6 Steel Braces (4 end post, 2 double middle post braces)

Wood - You Supply Locally

  • Grade 1 or 2 Lumber (SPF - untreated)
  • 6x6 posts - 6 @ 8feet height (5 1/2" x 5 1/2" nominal size fits boots/trusses but you may wish to get 6"x6" posts and trim down 1/4" on each side - this also helps water not seep into boots given overhang)
  • 2x12 beams -  2 @ 2x12s (16 ft)
  • 2x6 purlins - 16 @ 2x6s (20 ft)

Fasteners - You Supply Locally

  • #8 1/4" wide x 1 1/2" treated wood screws x 100
  • 1/2" wide x 9" long carriage bolt with nut/washer x 18 (Note: only 3 bolts per post are required despite 6 holes, ensure bolts are furthest from end of 2x12s to prevent splitting)
  • 1/2" wide x 7" long carriage bolt with nut/washer x 12
  • 1/2" wide x 2 1/2" long carriage bolt with nut/washer x 24
  • 1/2" concrete anchors/bolts (6 posts x 4 each) x 24

Steel Roofing - You Supply Locally

  • Roofing for a 20x20 size example: 14 roof panels 36" wide @ 139" long (2" overhang) plus 20' long ridge cap and fasteners
  • ASSEMBLY: 2 people, 2 or 3 days for a 20x20 carport
  • NOTES: You must drill holes in posts and beams and cut all wood to length as per permit drawings provided. We suggest using only 3 of the holes for each top post, furthest away from the end of the 2x12 beam (to prevent splitting). https://grizzlyshelter.ca/products/kootenay-20-foot-wide-carportAlso a good idea to order 5% extra wood to account for possible flaws/warping/damage.
